Extruded Pellets Manufacturing Line

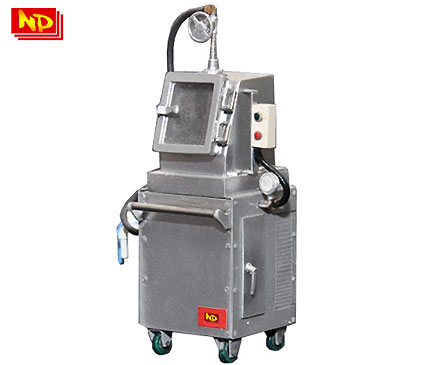

NCM-80 NOZZLE CLEANER




It consists of a washing chamber, water ejection nozzle, nozzle holder and high-pressure water pump. Nozzles can be completely washed in approximately one (1) minute by high water pressure ejection. Main part of the body is constructed by stainless steel (SUS 304 and SUS 27) and its simplified structure offers easy disassembling/reassembling for maintenance.



SPECIFICATIONS

Weight:
75 kgs.

Pressure:
0 - 70 kgs/cm²

Water Flow:
11 - 12 liters/min.

Motor Rpm:
690 (50Hz) / 730 (60Hz)

NCM-80 NOZZLE CLEANER
