SINGLE / DOUBLE LAYER
ED-1600/ED3000 FIRST DRYER




The First Dryer is a batch-continuous pellet dryer with 3 layers of stainless steel wire mesh conveyors. It is equipped with a set of recirculation and distribution conveyors to continuously mix the pellets during the drying process. Hot air is provided by four powerful axial blowers and heated by steam using a steam coil heat exchanger. Drying temperature is controlled by a digital temperature controller which regulates the steam supply to the heat exchanger. Drying time is about 3 - 6 hours at approximately 60C - 70C for standard pellets. The main drive running the SS wire mesh conveyors is inverter-controlled. It is connected to a connecting conveyor and cooling conveyor.



SPECIFICATIONS

Holding Capacity:
1,000 kgs/3-4 hrs

Power Requirement:
7 kW

Steam Consumption:
405 kgs/hr @ 6 kgs/sq.cm. pressure

Dimension:
9,775 mm (L) x 4,390 mm (W) x 3,770 mm (H)

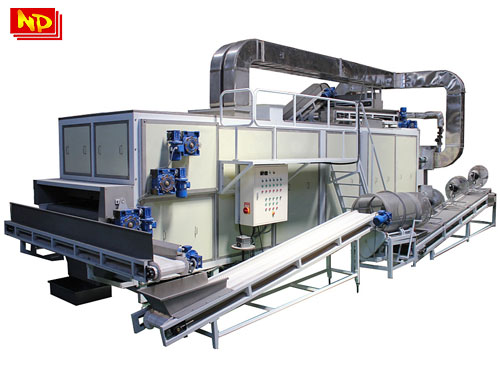

ED-1600 / ED3000 First Dryer
