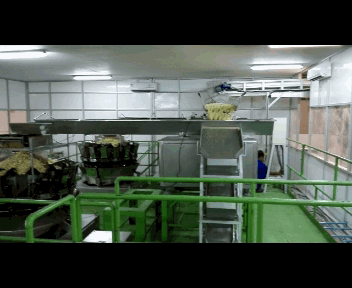

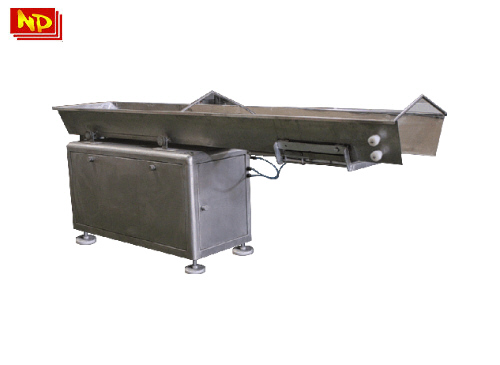

As part of the component of product distribution and volume control feeding the Multi-Head weigher, the Cross feeder serves as staging area and by Horizontal move uniformly supply sufficient product upon demand of Weigher. The staggered supply of product is monitored by Sensor by the Weigher.

Construction:

-SUS 304 material, T:2mm for 2,800mm through pans and all other parts touching the product

- Transmission Box with SUS Full cover and BI painted framing - Individual control box with Inverter control to each unit of Main conveyor and Cross feeder

- Dispersal capacity: 8-12 kgs./Min.; depending on product bulk density - Main conveyor with Pneumatic gate control for product dispersal - With product sensor

- Dispersal capacity: 8-12 kgs./Min. depending on the product bulk density - Motor Drive: 0.4 kw; 220v; 3p
